Disconnect and Remove battery

Remove intake S tube and breather hose

Remove vac hoses to make room for injector removal

Remove injectors. Easier said then done in some cases. If the seals are very hard and the injector wont come out take a thin sharp pick and poke at the injector seal to break it apart

Unbolt and remove the cold start injector. The new map sensor will be install here and sealed with a silicone sealant.

The kit no longer comes with a block off plate for this. They are available upon requested

Start disconnecting the wiring for the cis. The thermo time switch can be unplugged but do not remove yet.

Note : This is located on the drivers side of the cylinder head on CIS-E 16v models. On CIS-E Motornic 16v this sensor is not there, instead an allen block off plug is installed. Remove this plug to install the new ECT sensor

Unbolt and remove the control pressure/warm up regulator. This is not on any CIS-E systems

Injectors, cold start injector and wur almost ready for removal

Loosen the fuel cap to make sure all pressure is release from the fuel tank, then retighten cap.

Remove fuel filter feed line to the fuel distributor. Place rags under the filter to catch the fuel that will come out

Unbolt the fuel return line from the fuel distributor. It is the bigger line on the double banjo fitting

Unbolt the 3 flathead screws (or torx in some cases) and remove the fuel distributor

Unbolt the frequency valve. Save the bolt for the FPR bracket.

Cis-E car will not have this valve

Complete fuel distributor and injectors removed

Remove the fuel return line. It is the black plastic hose. Note depending how full your fuel tank is fuel may start flowing out have a plug handy to block the line off

Fuel return line temporarily plugged

Start removing the old ignition system and wiring. The ignition control module/knock boxes will be removed

Unplug ignition distributor

Unbolt and remove ignition coil. Note: On early cars the coil wire has wing connection terminals on the connector, the later cars and aba coil in the kit have the stud style. I have added a new stud style connector end in the kit for early cars. Using silicone spray or another lube unscrew the connector from the coil wire and lube and screw on the new coil wire connector

In some vehicles the green signal wire to the ignition control module will be in the same connector as the red/black tach signal wire. The green wire will be removed

To remove the green wire use a thin pick or paperclip to push the locking tab.

Red/Black tach wire

Ignition control module and wiring removed

Begin removal of the cis control module and wiring. On MK1 this is in the P/S foot well. The wiring will be pulled from the engine into the passenger compartment for removal

Note : On MK2 Scirocco the modules/Knock Box/ECU are located in the drivers side rain tray

Cis control module and wiring removed

Begin removal of the vacuum hoses to the ignition system

Remove and plug the hoses to the back of the throttle body

Remove the plastic timing plug on top of the transmission to check TDC. You can use a 1” nut to help remove the plastic plug if stuck

1” nut to help removed plastic timing plug

Crank pulley at TDC. You must check the ignition distributor and flywheel as well

Ignition distributor at TDC. The center of the rotor will be inline will the groove on the distributor housing

Flywheel at TDC. Some Flywheels have a dot and V. In that case the Dot is tdc.

Some Flywheels have only a V. In that case the V is TDC

If uncertain at anytime where tdc is remove spark plug #1 and spin the motor over by hand to verify the piston is at the top of the its stroke. You can use a philips head screw driver as a reference, but take extreme care when doing this

On vehicles with a vacuum advance ignition distributor, the distributor will be removed and replaced. CIS-E, CIS-E Motronic, Digifant 8v/16v will not be removed

New ignition distributor install at TDC

Note : Some new distributors will not have any tdc marks on them. In this case install the distributor so the rotor is pointing at cylinder 4 as in pic and connector is pointing towards the body frame rail.

Also verify your ignition wires are in the correct place on the distributor cap. Cylinder 1 wire will line up with the rotor position at tdc.

8v firing order will rotate clockwise

16v firing order will rotate counter clockwise

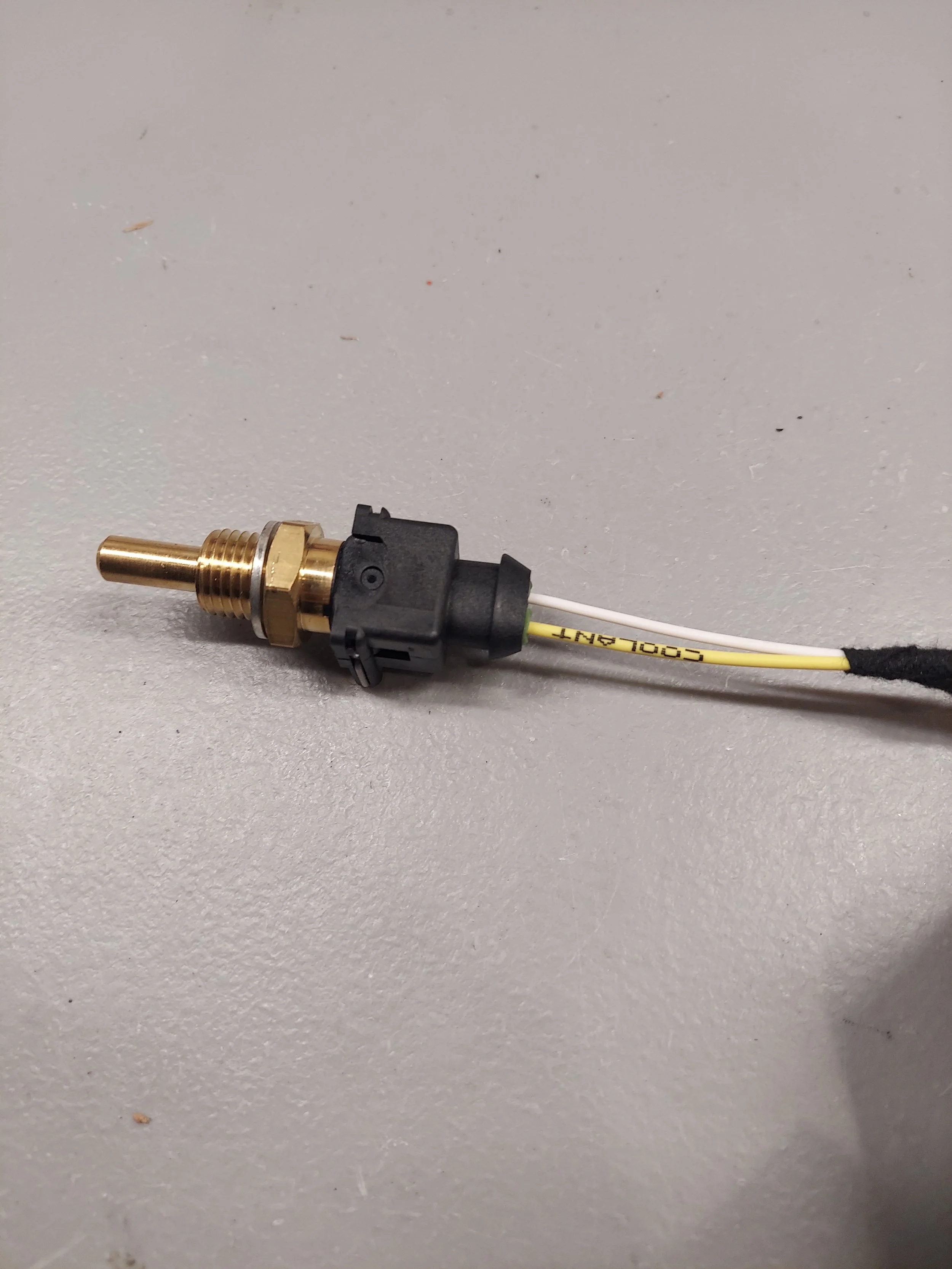

Remove Thermo Time Switch and install new ECT sensor.

Note : Loosen the radiator/overflow tank cap first to let any pressure out then retighten. This will help keep coolant from leaking out when the sensor is removed.

On 2.0l 16v this sensor has been removed and an allen plug put in its place. Remove the allen plug and install the new ect sensor

Allen plug to be removed on 2.0l 16v heads. Located under the coolant flange on the side of the cylinder head.

1.8l 16v have a thermo time switch in this location

Ect sensor installed in place of Thermo Time Switch on 1.7l 8v app

Remove old CIS fuel injector Bungs and install new supplied bungs.

Note : YOU MUST PUT A SMALL AMOUNT OF RTV/SILICONE SEALANT ON THE THREADS OF THE NEW BUNGS BEFORE INSTALL ON ALL APPLICATIONS 8V AND 16V

Install new ABA coil using supplied hardware. Note : The M8 nut will act as a spacer to space the coil off the firewall. The flat side of the nut will go against the firewall. This is usually only needed on Mk1 apps. Mk2 and scirocco should not need these

New ABA coil Installed.

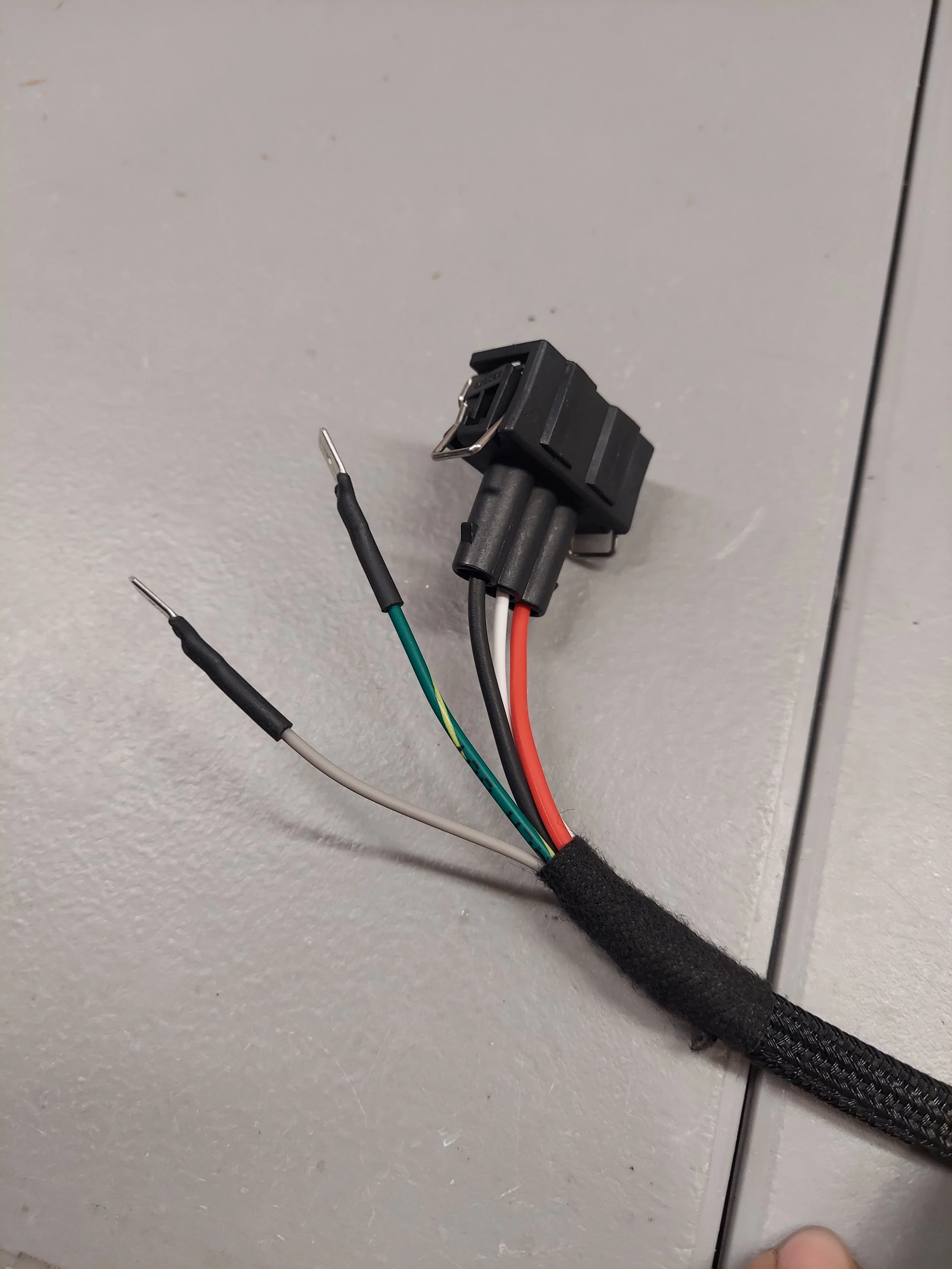

On the new harness the Green/Yellow Tach wire will go to the Red/Black Tach wire removed from the original coil.

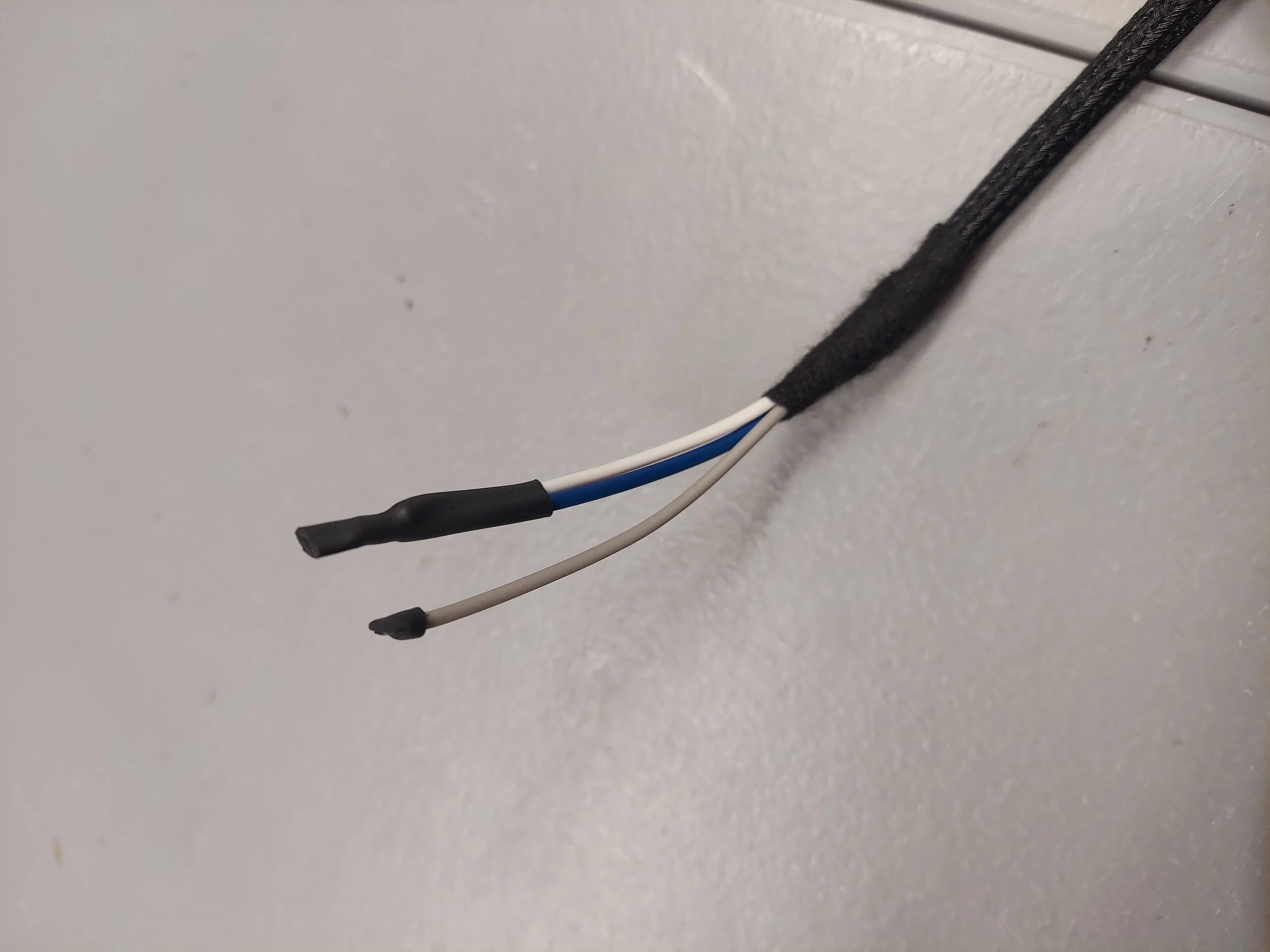

The Gray wire will go to the single key on power black wire removed from the original coil

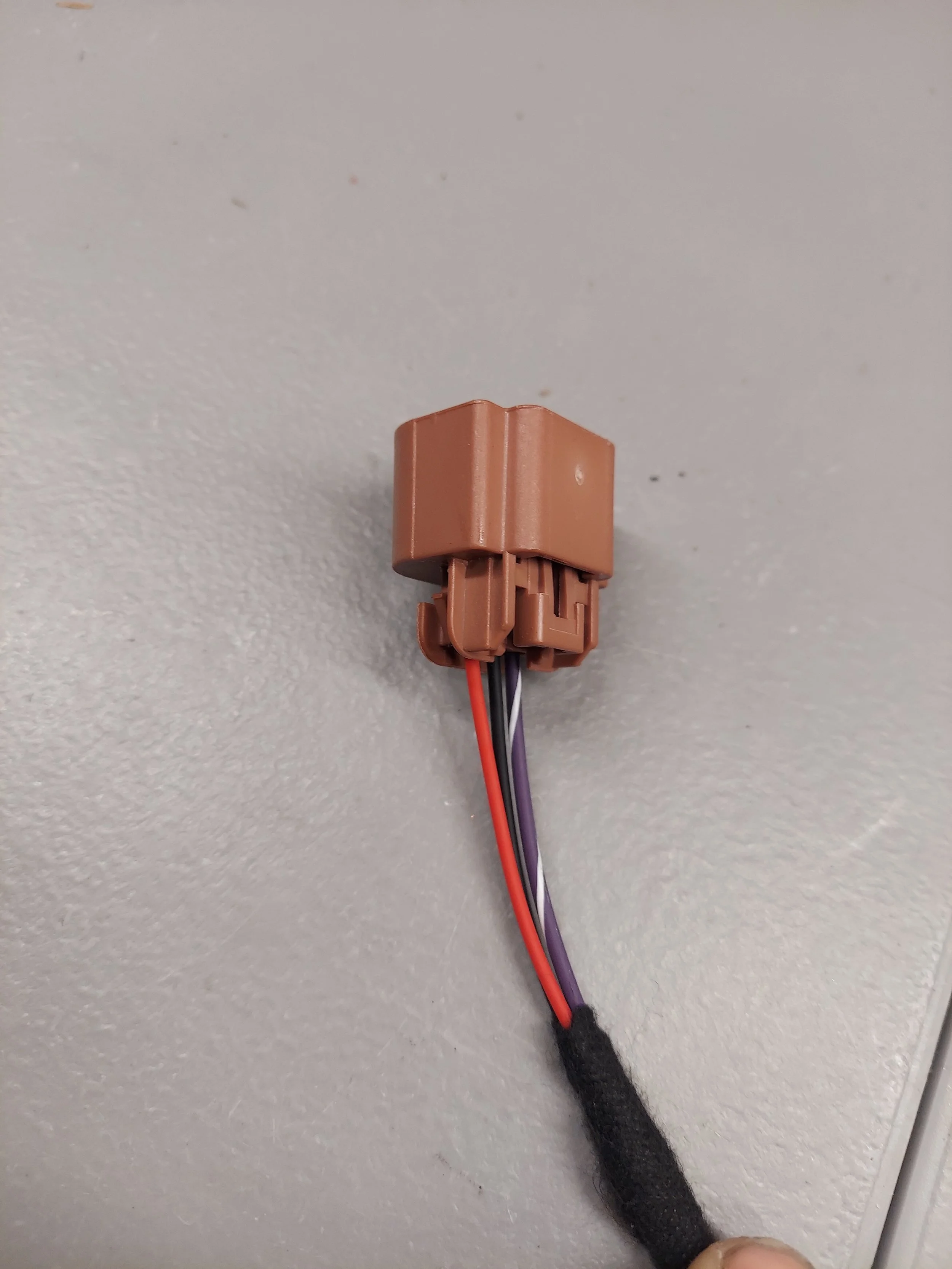

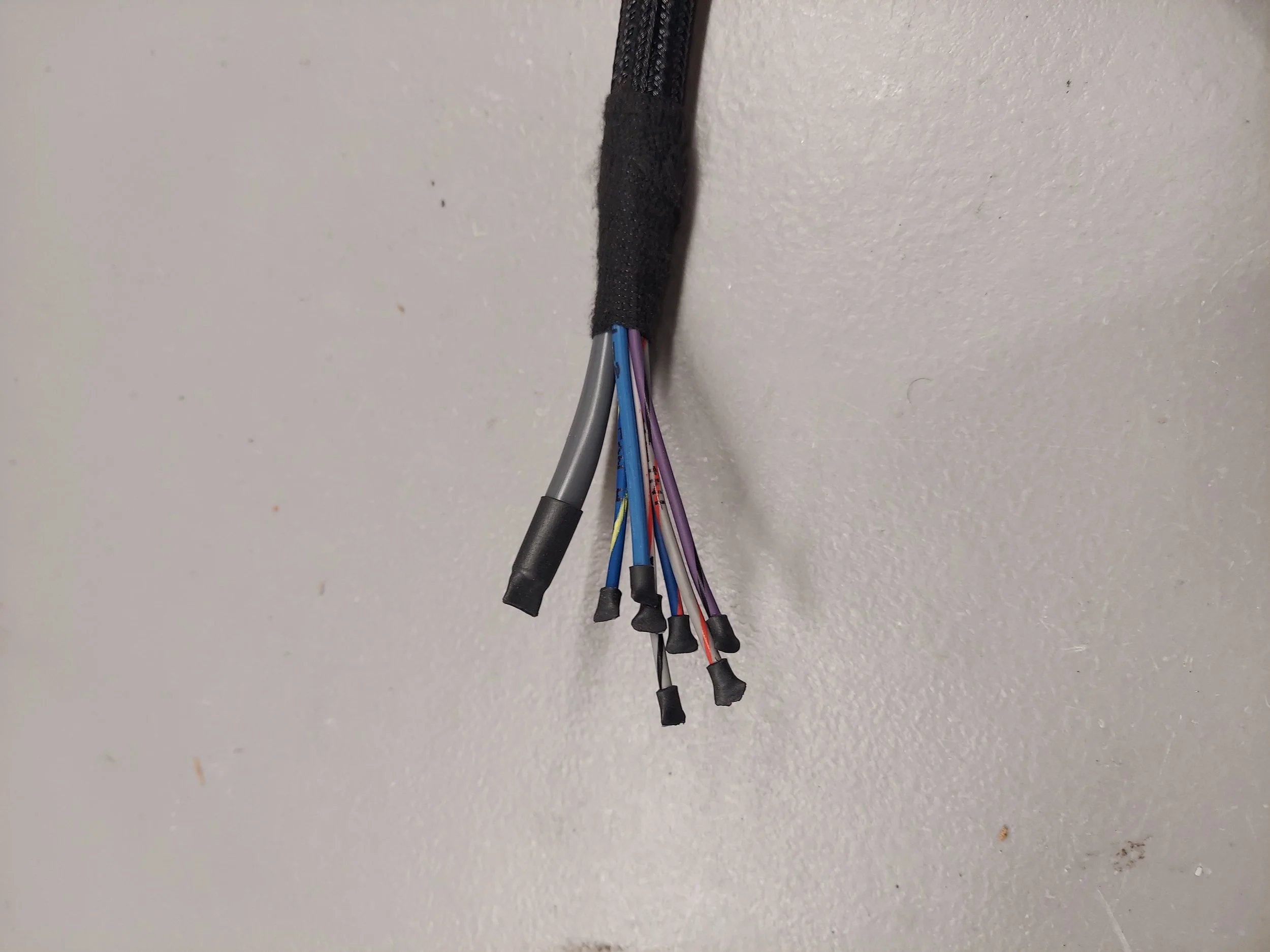

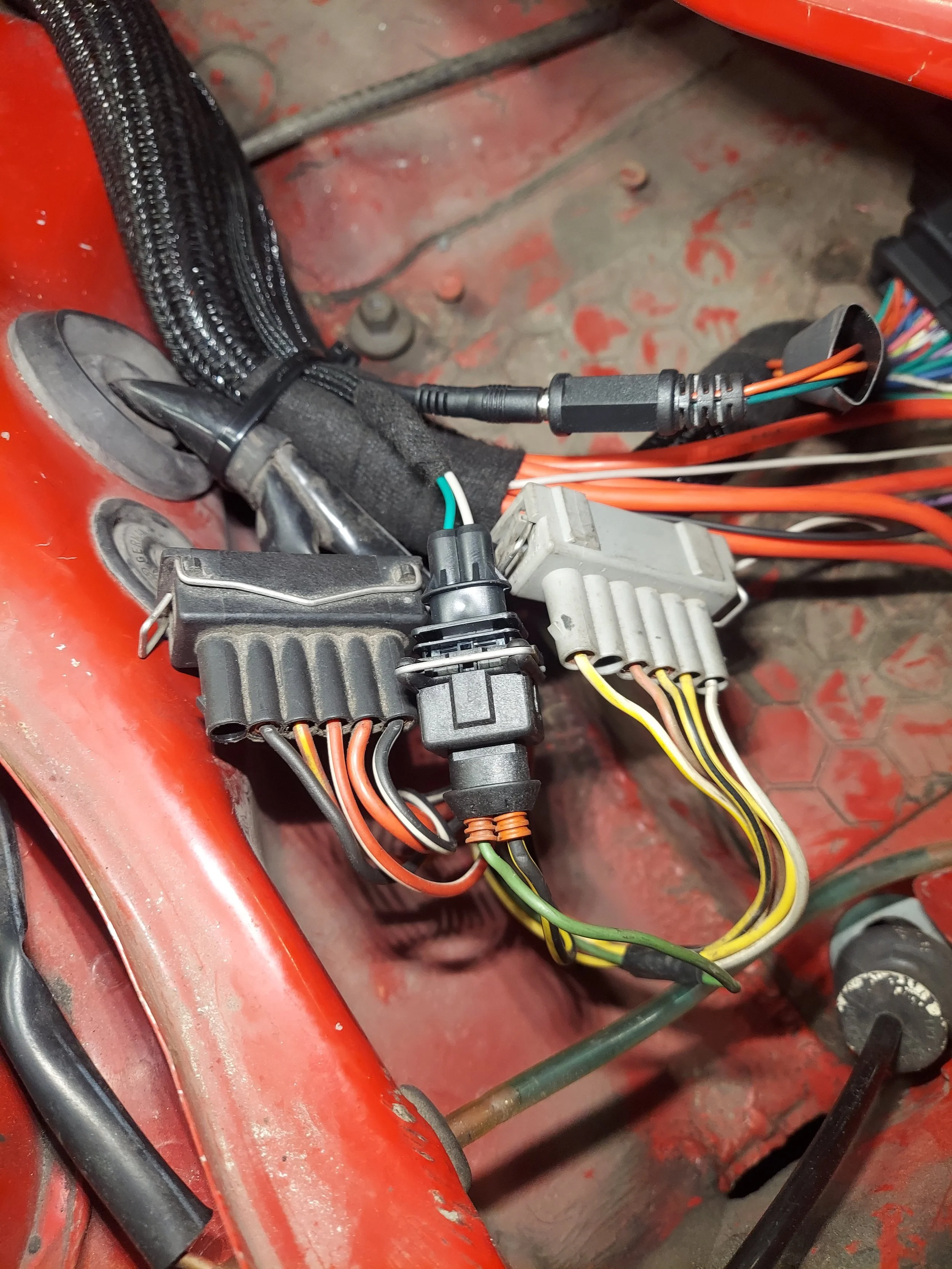

On Mk2 CISE Motronic apps there will be an extended jumper harness supplied to go to the rain tray. There are two 6 pin connectors by the ecu a black and a grey.

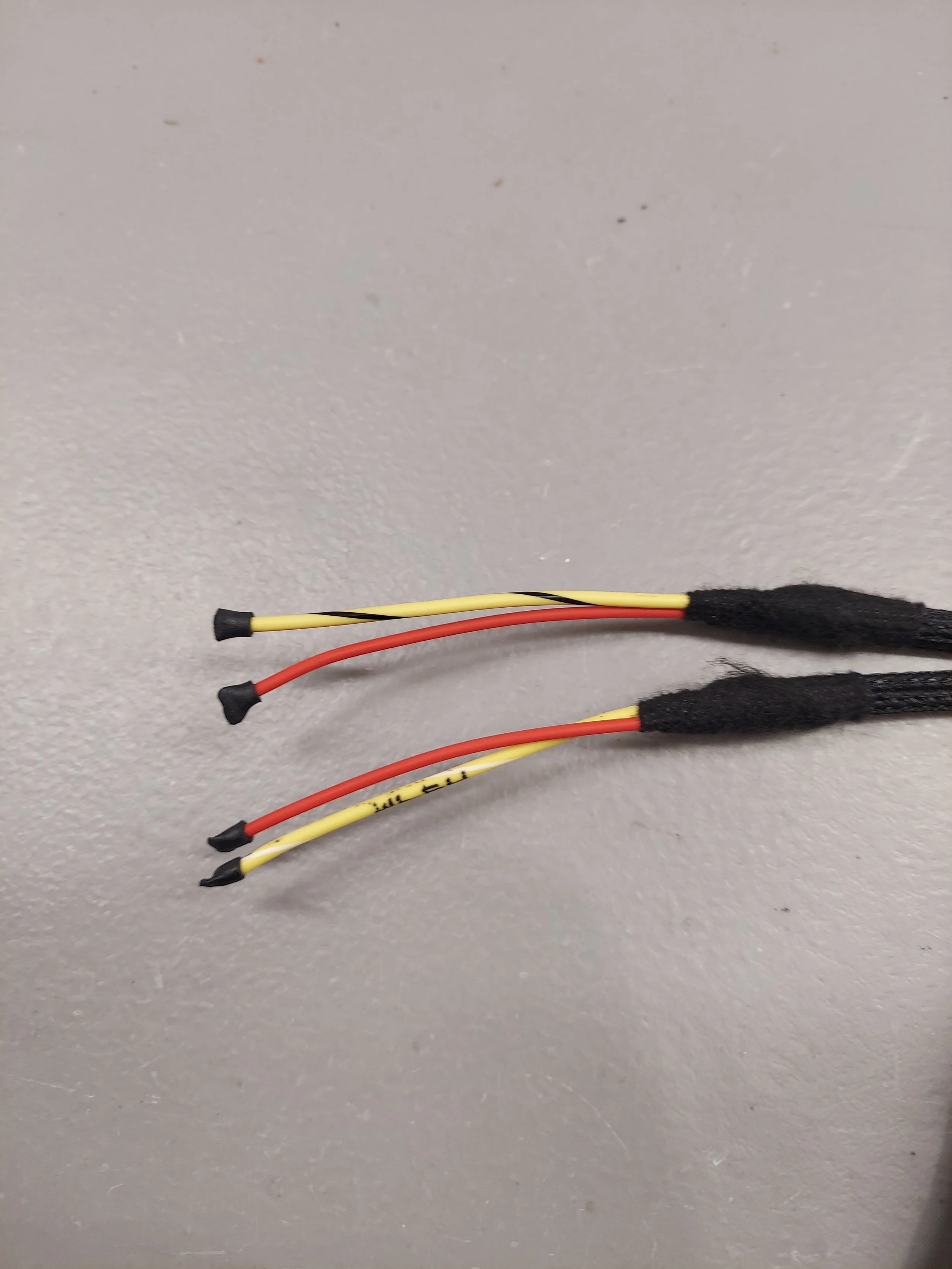

You will need to removed female pin 6 on the black connector, should be a black or black/yellow wire, and install on the new supplied connector matching up to the grey wire.

You will need to remove female pin 2 on the grey connector, should be a green wire, and install on the new supplied connector matching up to the green wire

Install new FPR onto fuel return line.

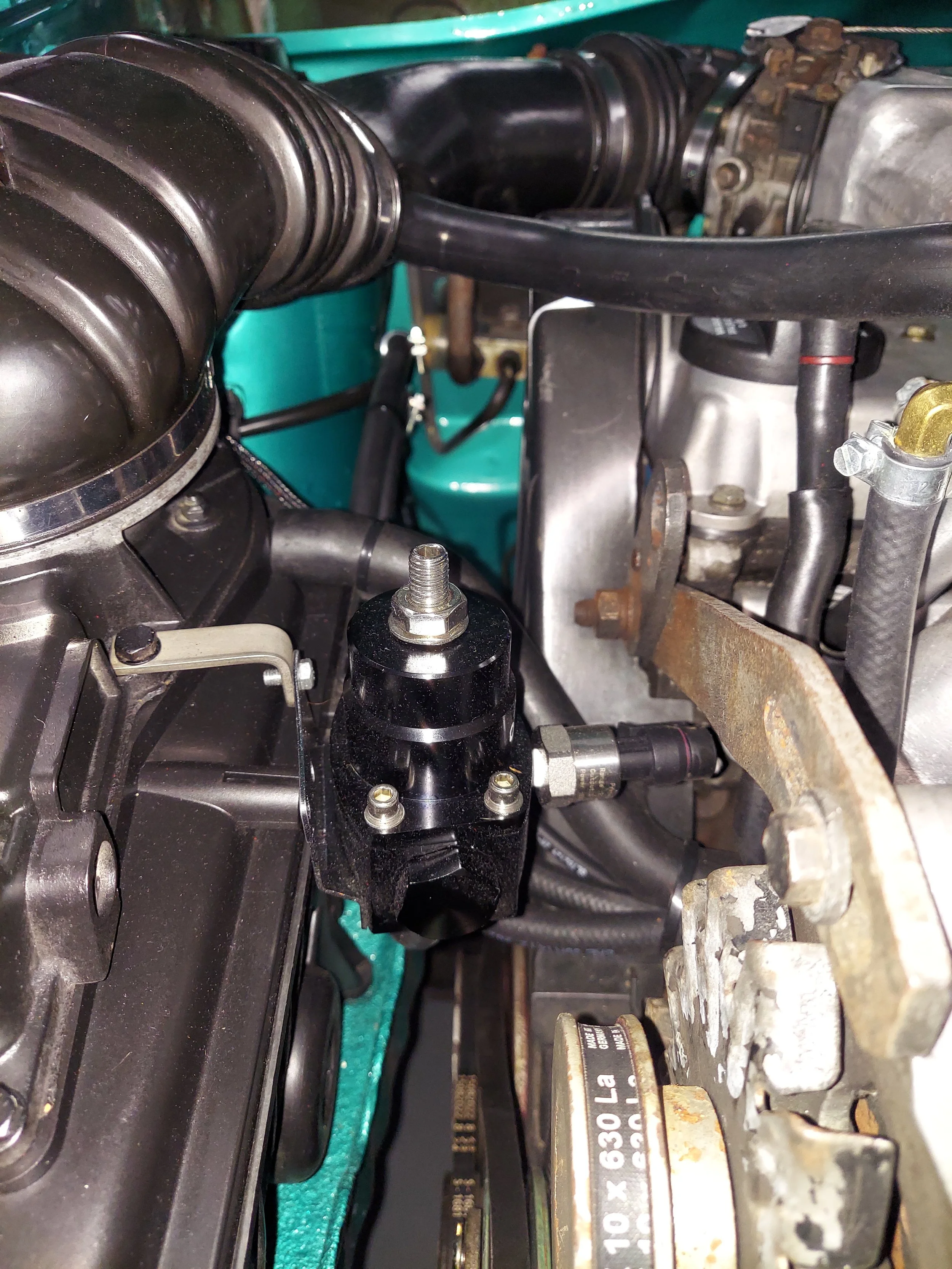

With the new FPR installed on the fuel return line, tweak the return line into place so the FPR bracket will bolt onto the supplied airbox mounting bracket

Begin measuring the IAT sensor mounting hole location

If your not going to be using the stock air box you can install the sensor in an intake tube using a round rubber grommet.

On turbo apps I recommend installing the IAT on the intercooler pipe after the intercooler

Once measured out drill a 1/2” hole in the airbox. Do not drill the mounting hole yet

Install sensor temporarily to mark mounting hole drill location. Drill a 1/4” hole for mounting bolt and install sensor

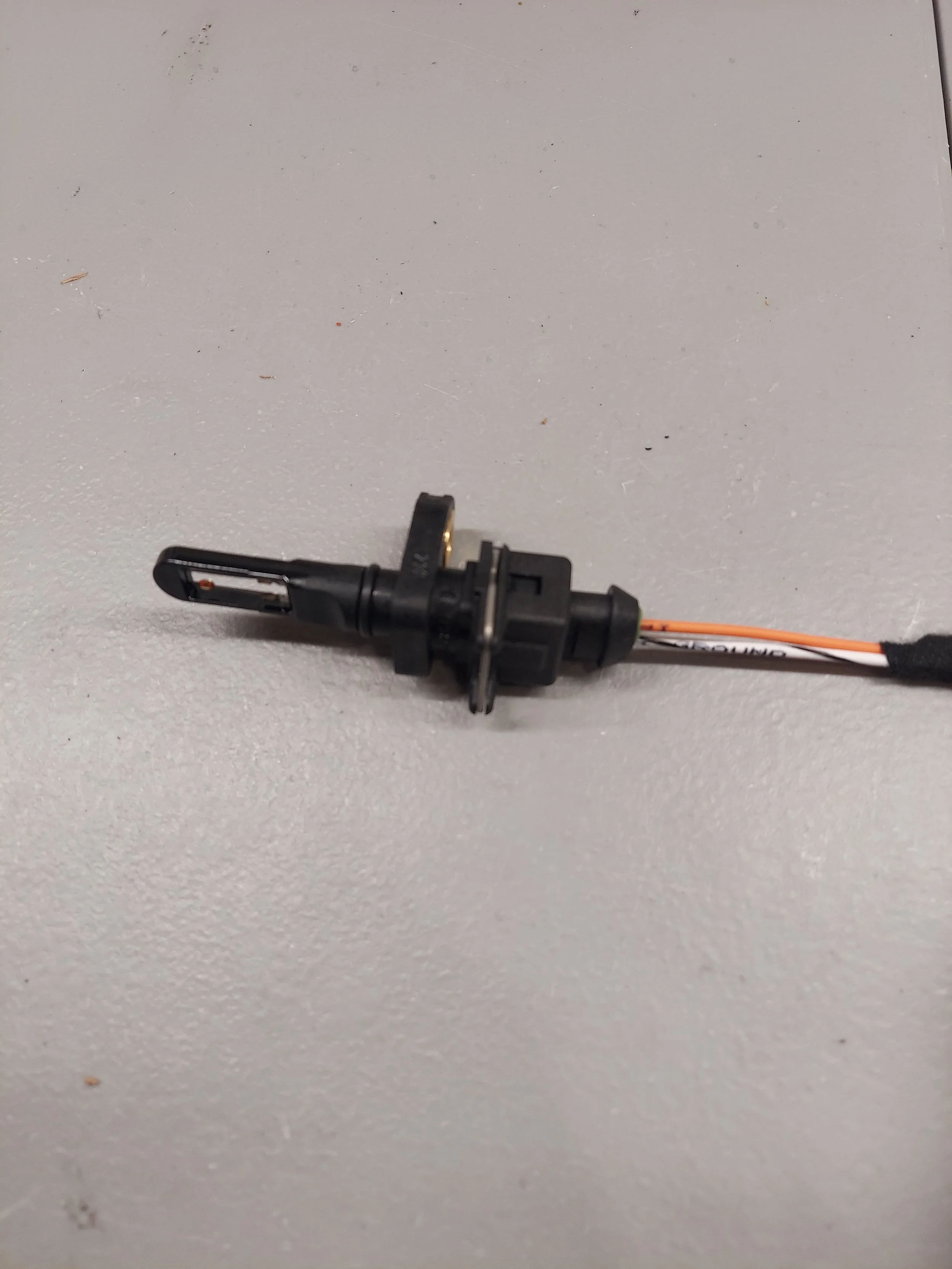

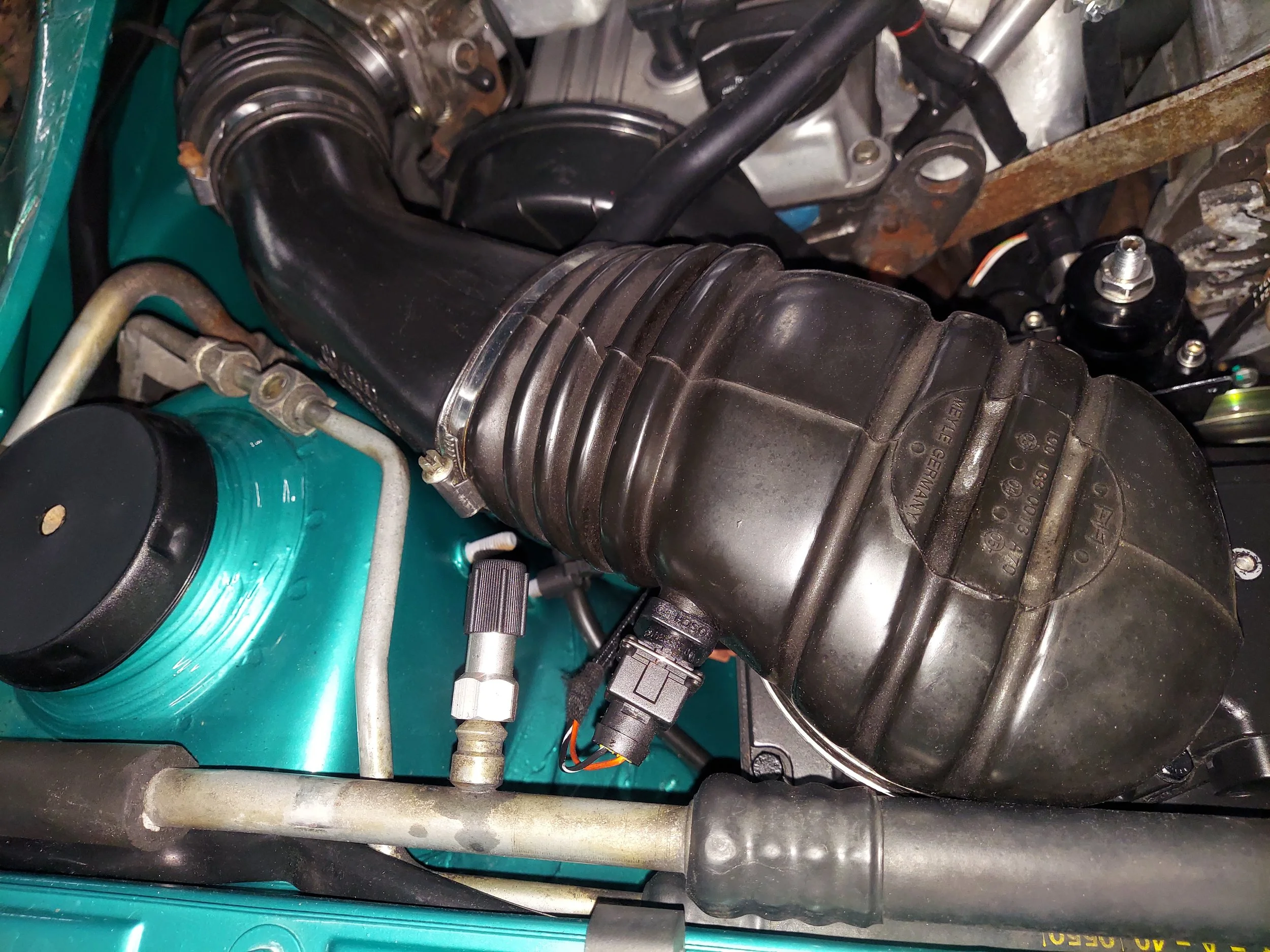

IAT sensor installed. Reinstall airbox assembly

Install cold start injector block off plate

This block off plate is no longer provided unless requested. The new map sensor will be installed in its place. The map sensor will be sealed with a silicone sealant

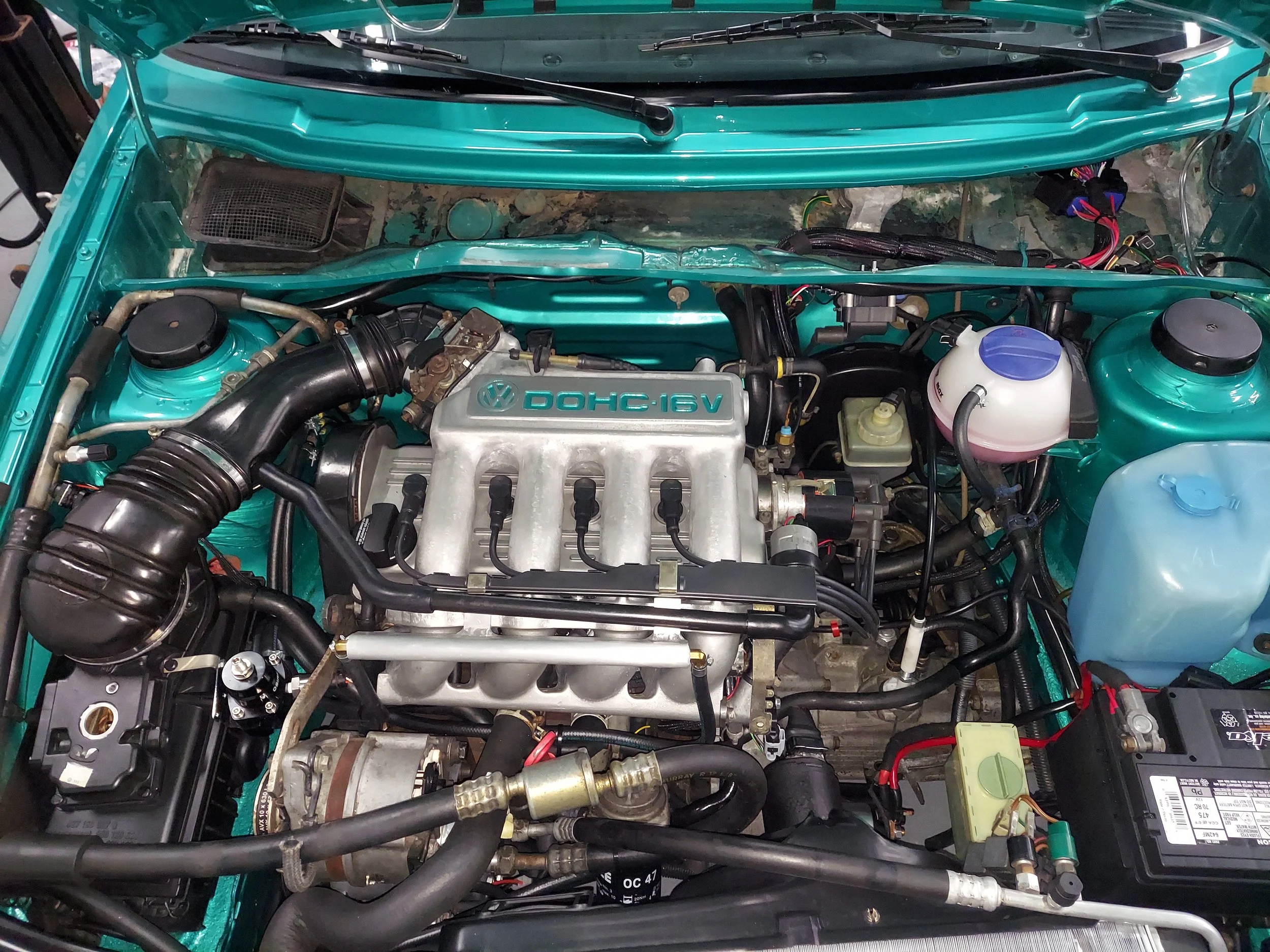

Install New fuel injectors, fuel rail, and mounting brackets. Lube injector o-rings with a little die electric grease or motor oil before installing.

When tightening down the fuel rail, leave the brackets attached to the rail loose and tighten down the brackets to the valve cover studs first. Then tighten the rail bolts

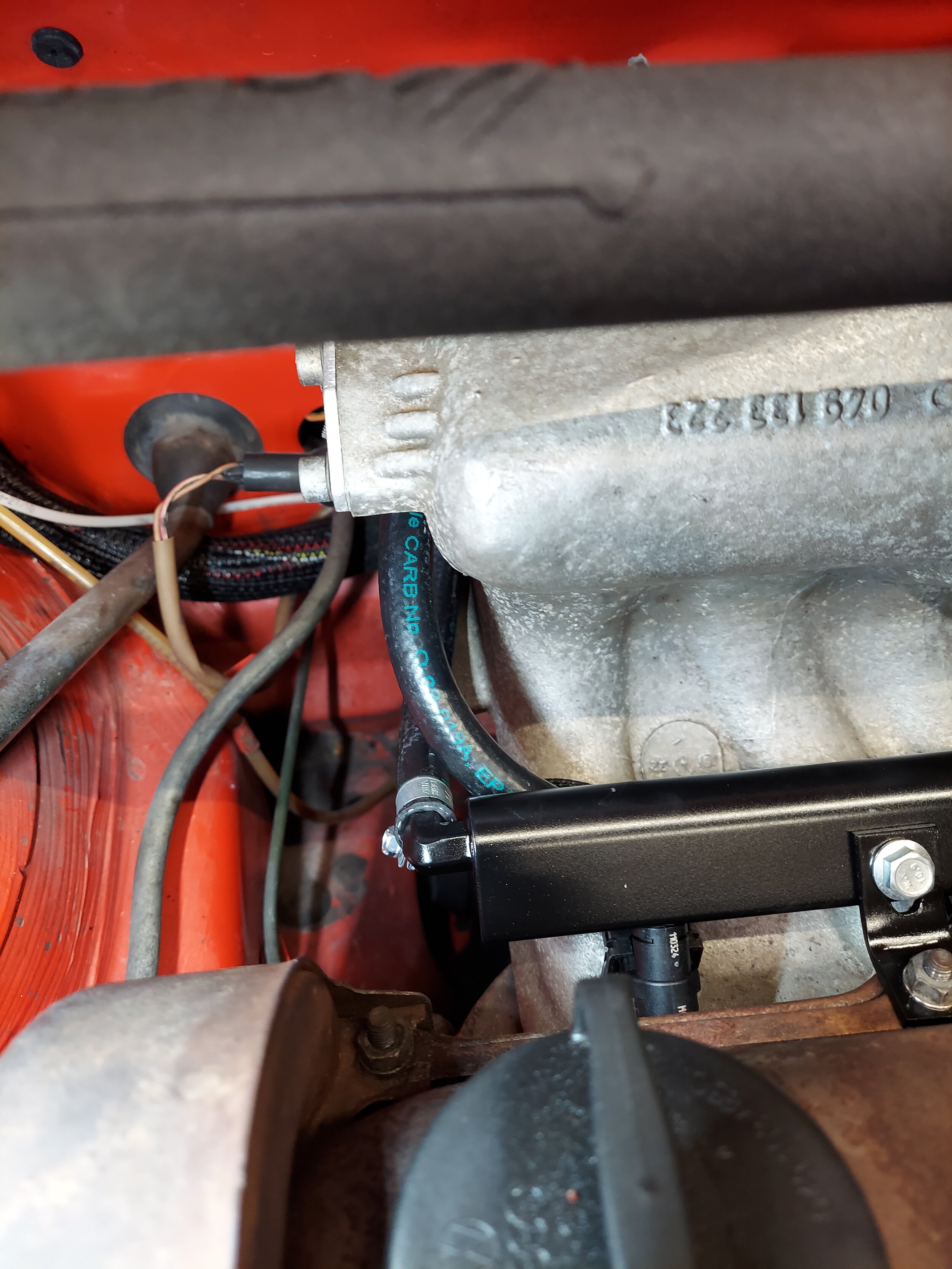

Install new fuel return line hose from the 90* fitting on fuel rail to the FPR. It is important to make the loop in the return hose at the fuel rail fitting to keep the hos from kinking

Install new fuel hose feed line from the straight fitting on the fuel rail to the supplied banjo fitting for the fuel filter

New feed line

New fuel feed line hose and banjo fitting installed on fuel filter

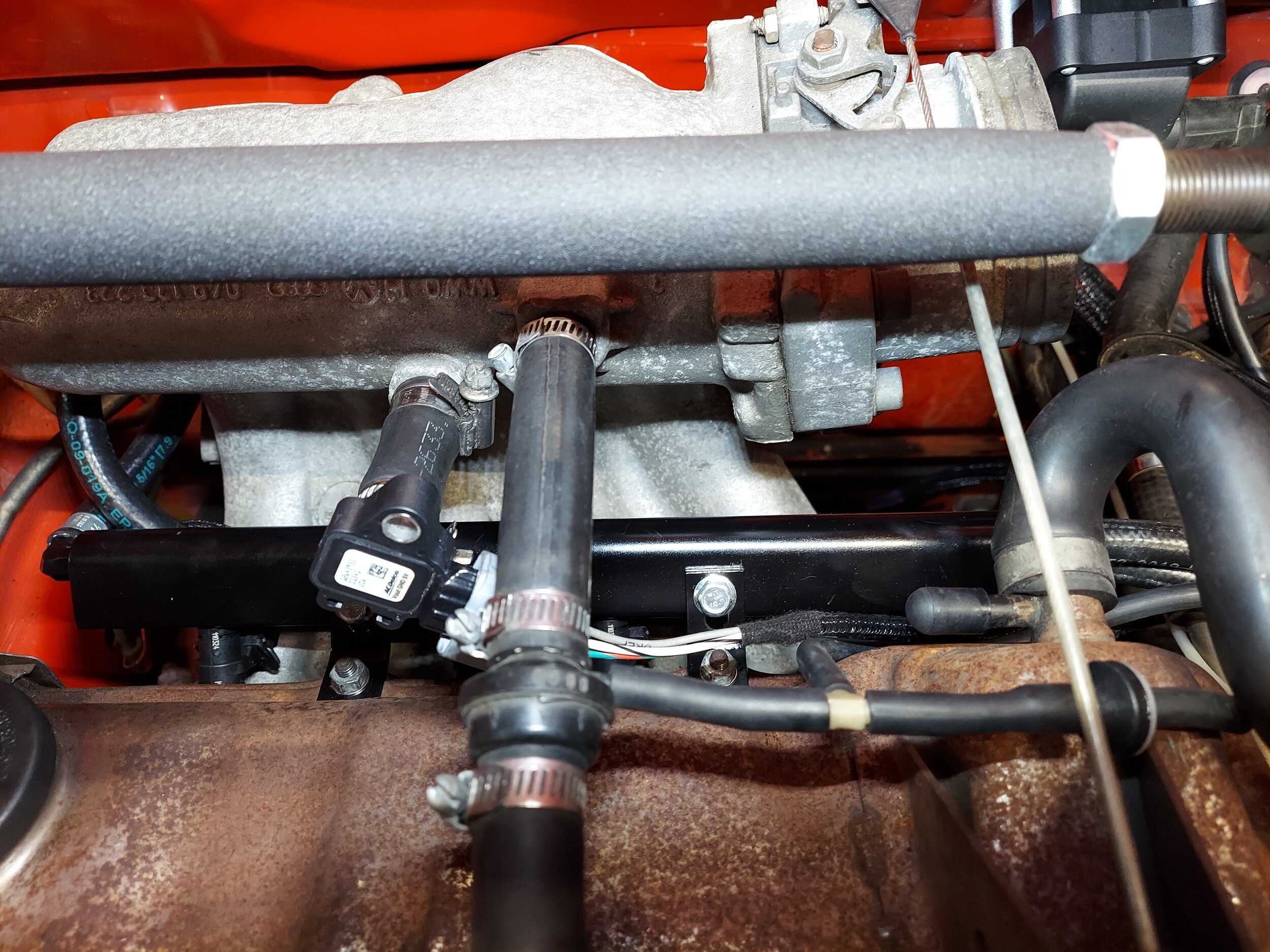

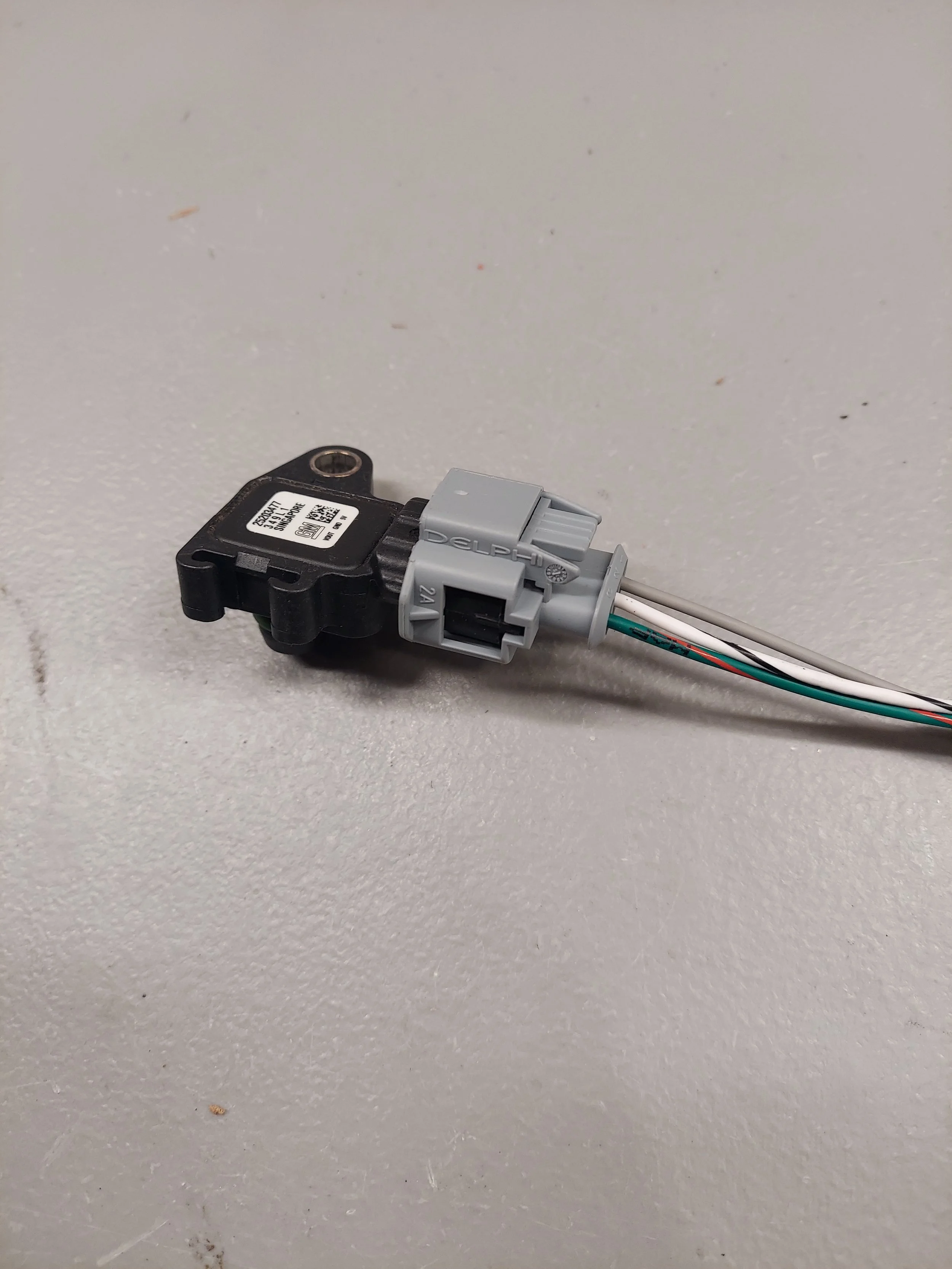

Install map sensor to manifold vacuum

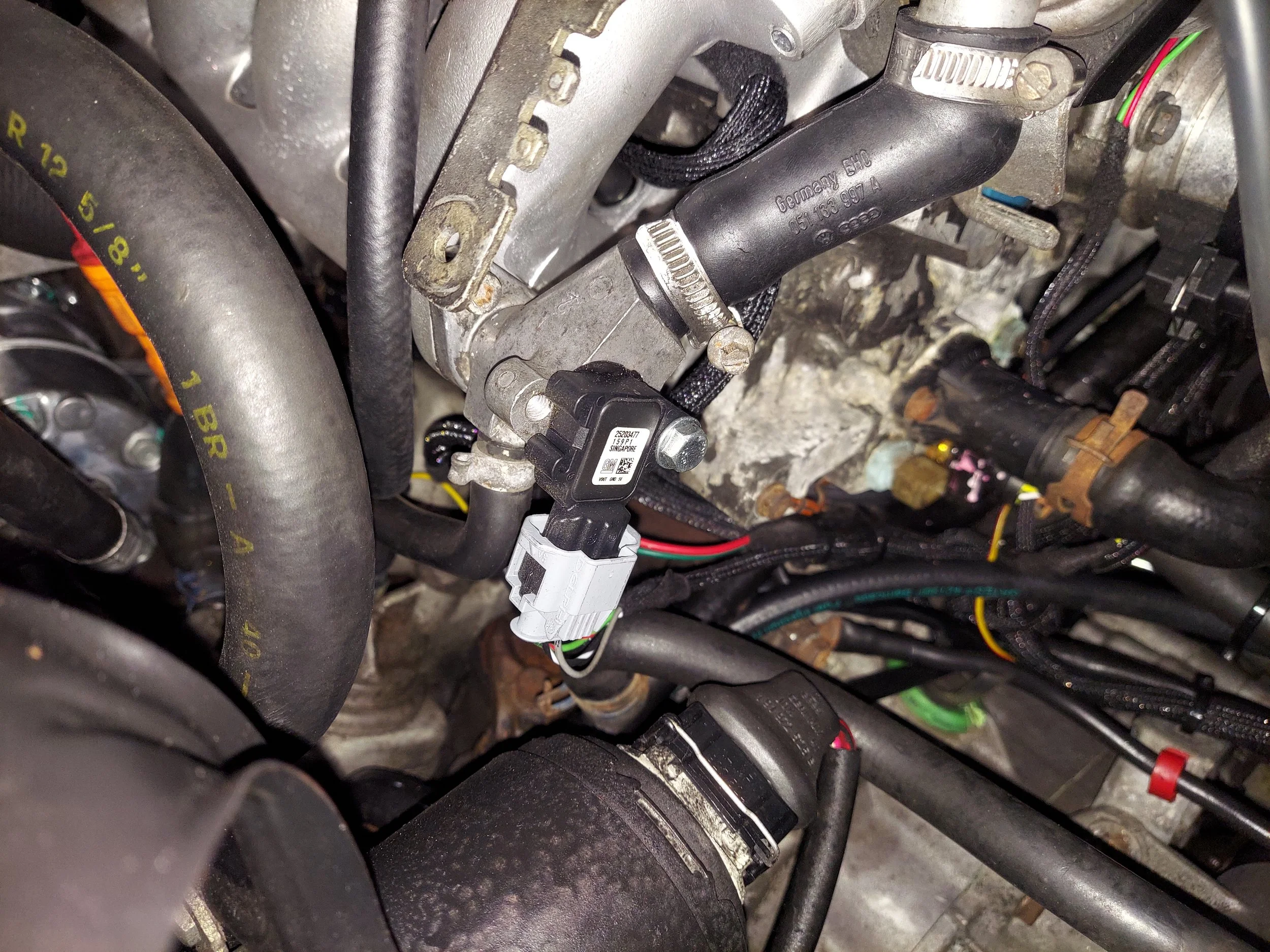

This step pictured is being left up for reference. The new map sensor will be installed where the cold start injector was originally. The new map seansor will be sealed with a silicone sealant

Time to start installing the new wiring harness. This can be run out the original cis wiring hole from the inside the car out to the engine bay (recommended for na, supercharged or nitrous installs), or is long enough to run across the knee bar and out the driver side firewall (recommended for turbo apps). The original wire harness firewall grommet will be split on one side and reused on the new harness

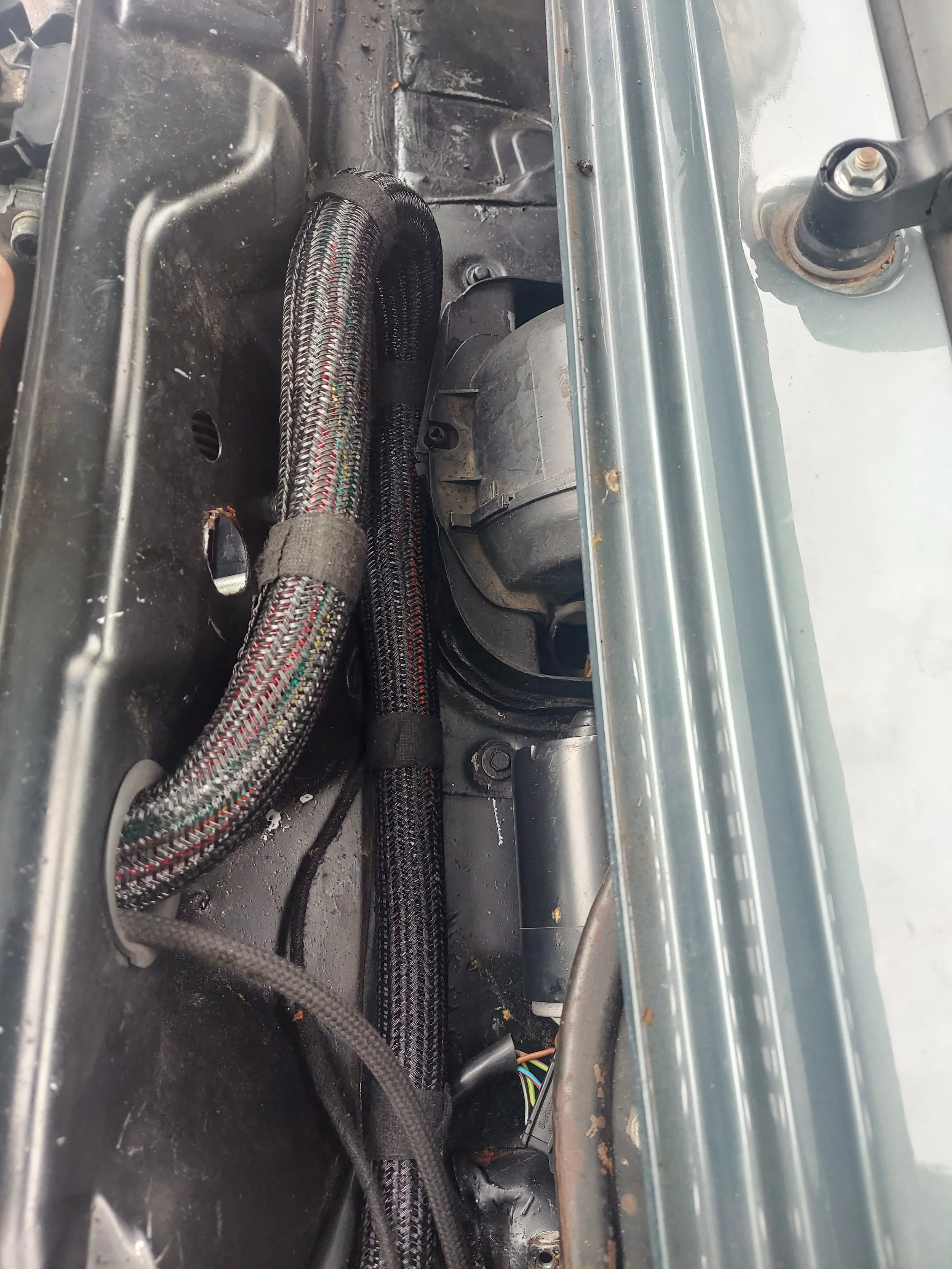

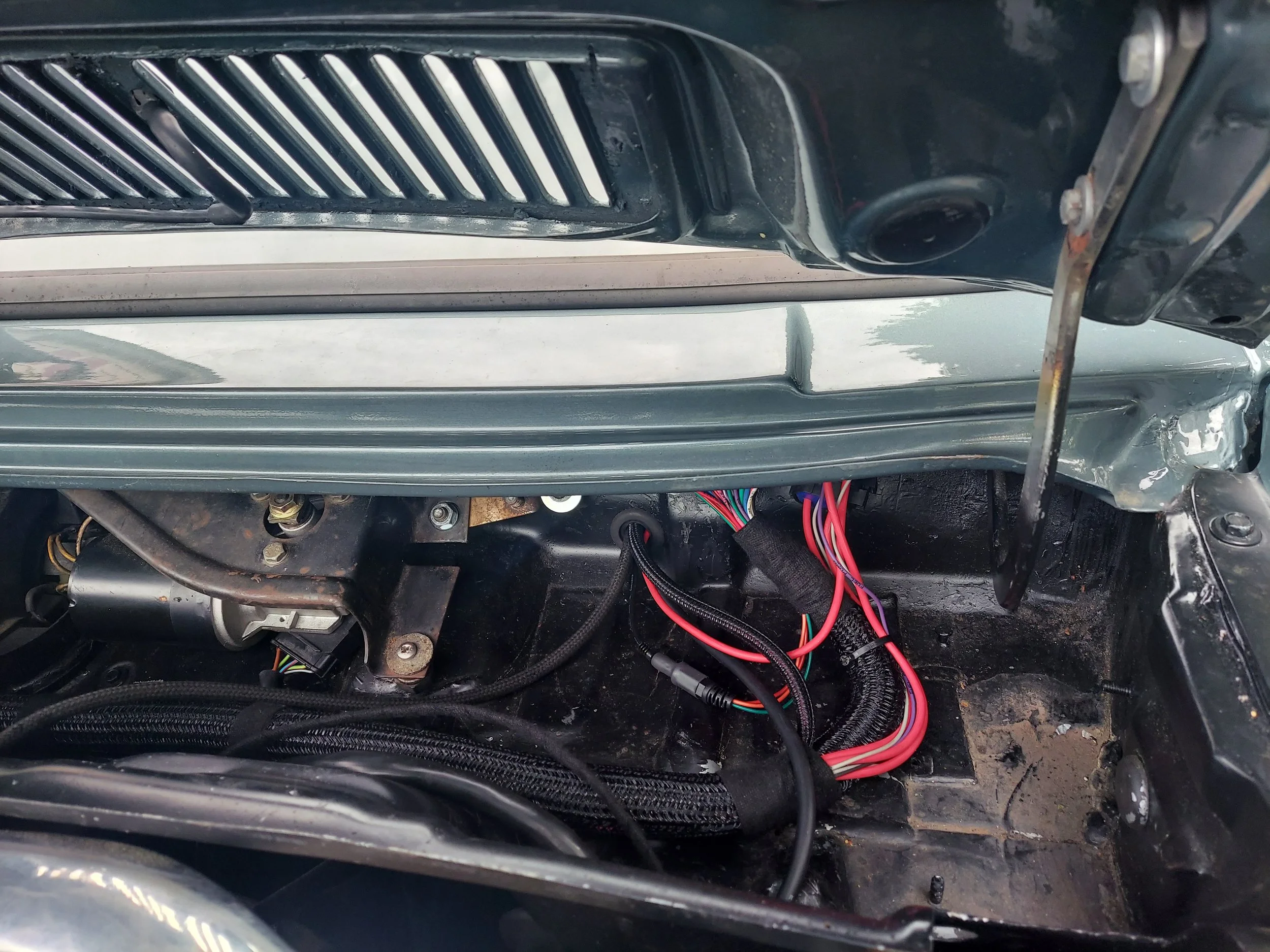

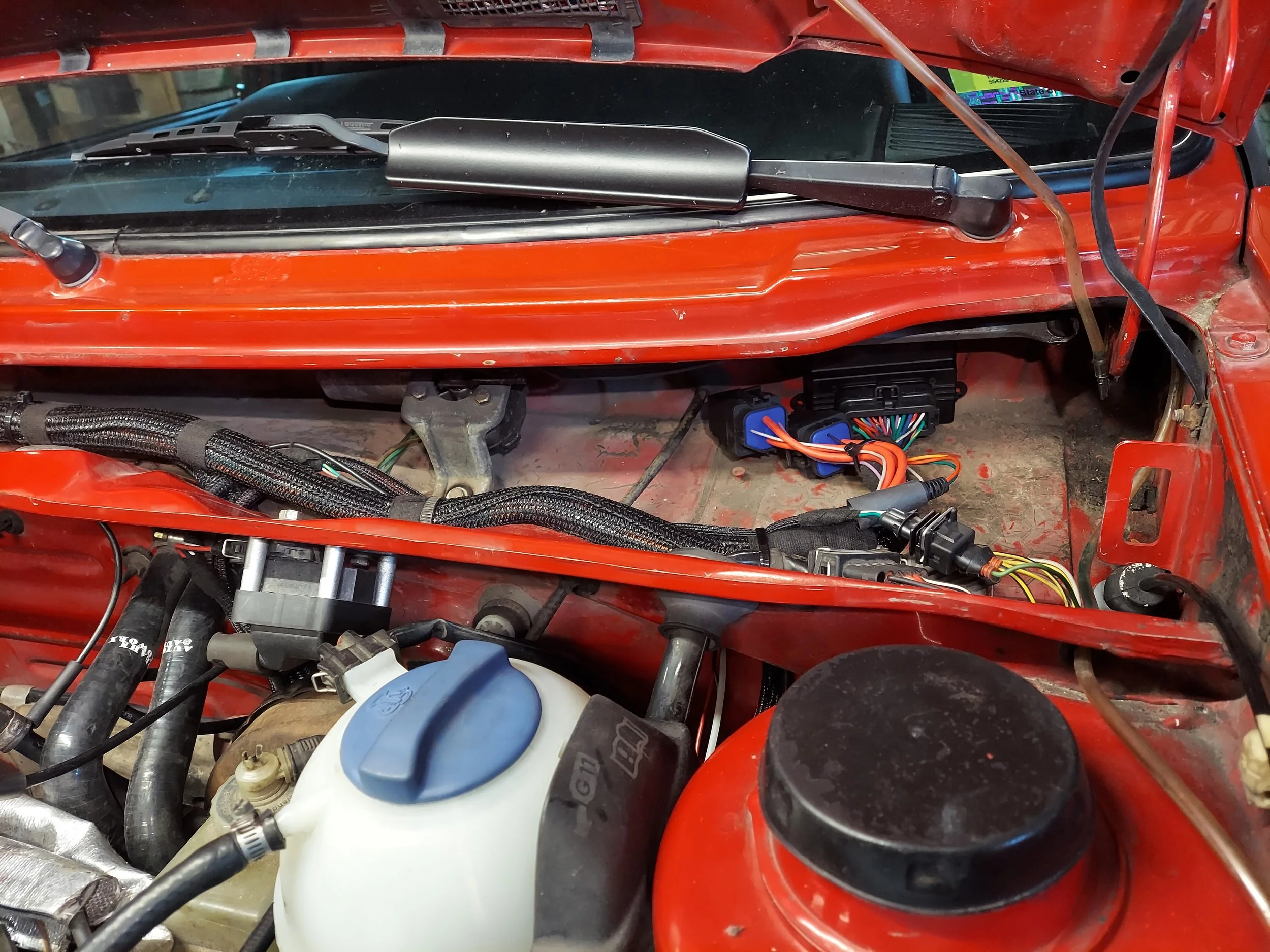

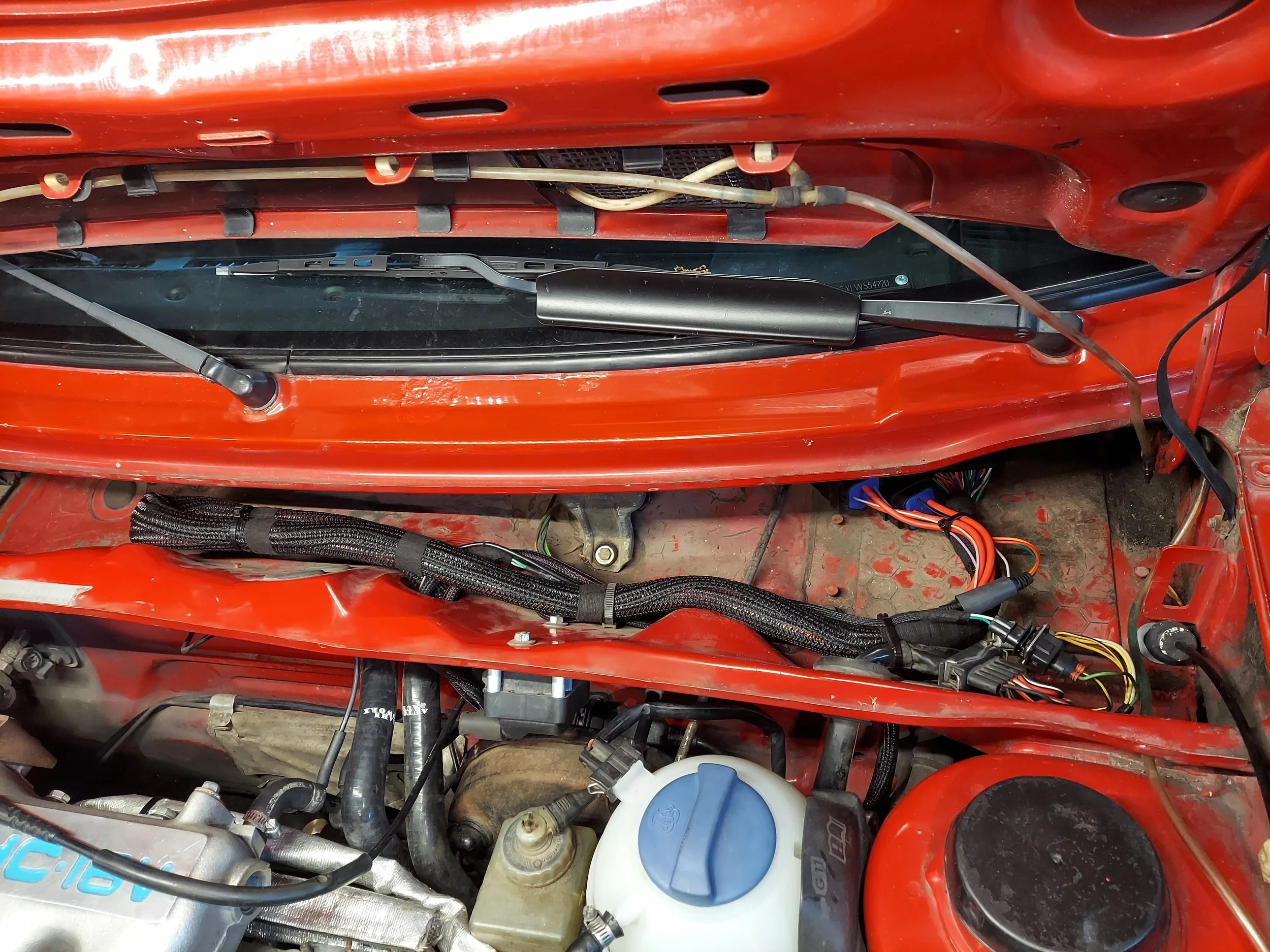

Note : On MK2 Jetta/Golf/Scirocco the harness will route through the rain tray. On some Sciroccos the hole is only about 1” round and will need to be trimmed open to 1 1/4” or a little larger

On cars with the 1 1/4” firewall hole the connectors need to be fed into the engine bay in a specific order.

Start with your biggest 3 pin connectors first. Once all the 3 pin connectors are through move onto the 2 pin connectors. Its a tight squeeze but they will all fit through

Harness running across kneebar

Harness running across kneebar

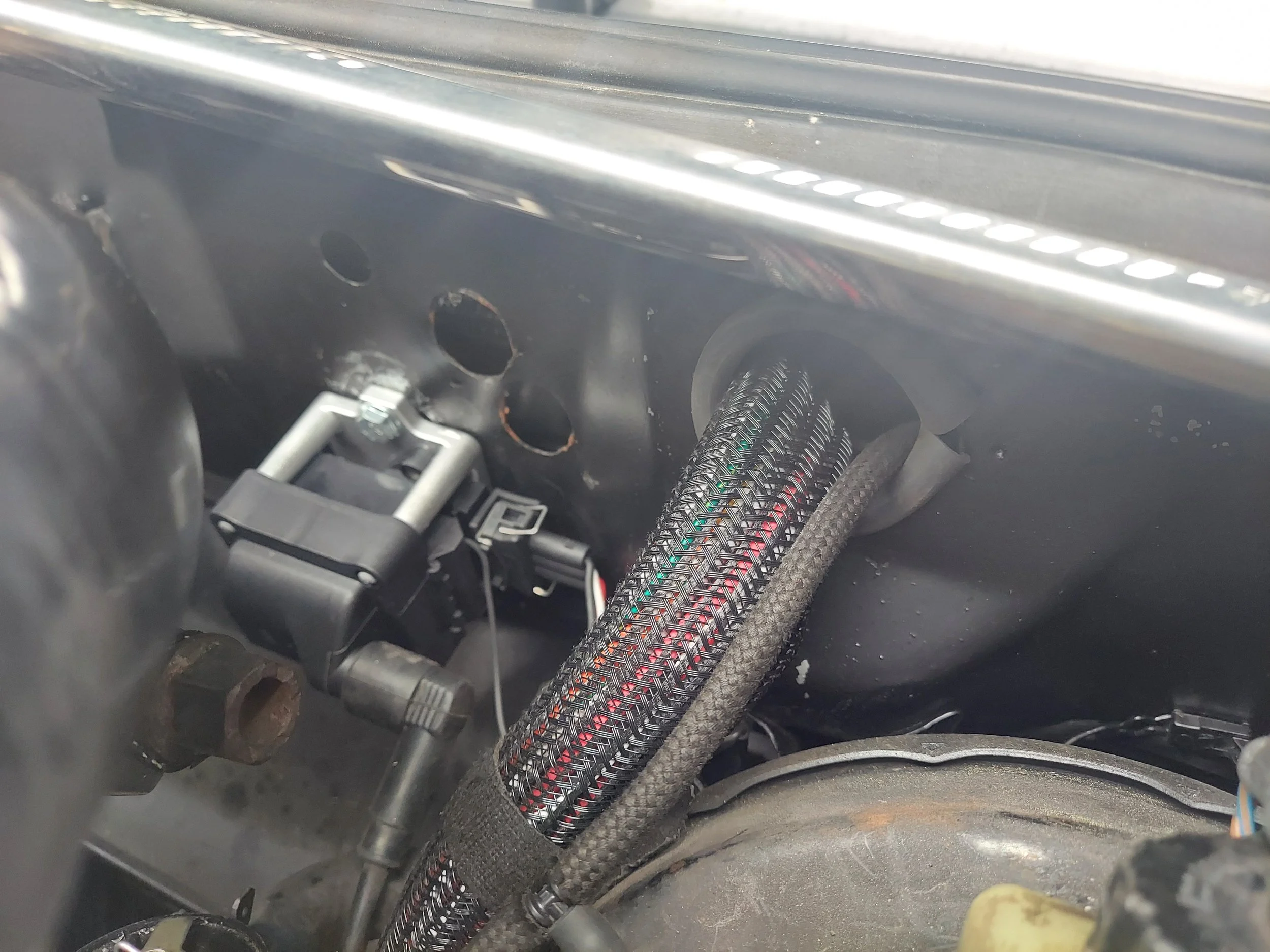

Harness running out driver side firewall

Note : On MK2 Golf/Jetta/Scirocco the afr gauge, data cable and new fuel pump power wire will run through the small 1/2”-5/8” hole by either the speedo cable in the rain tray or down by the brake booster.

The data cable head phone jack will be fed from inside the car out to the engine bay/ rain tray area.

The afr gauge and fuel pump wires will be fed from the engine bay/ rain tray area to the inside of the car

Harness running out original cis wiring hole on passenger side firewall.

You will need to split and remove your old firewall grommet and install it on the new harness

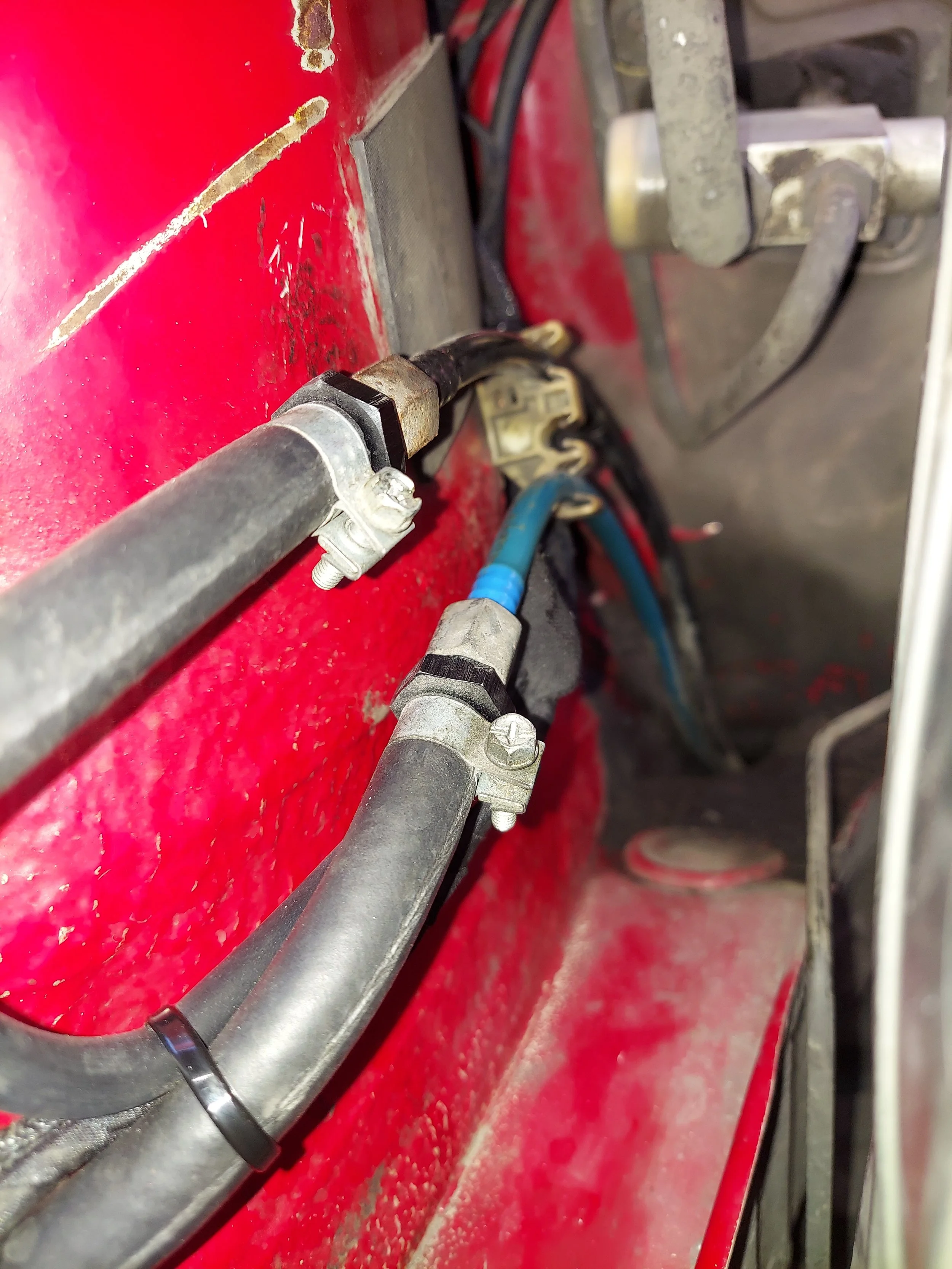

Hook up new fuel pump power feed wiring to the pump. The old pump wiring can stayed hooked up to the pump as well. Remove the old fuel pump relay (it will not be used). This can be run direct to the fuel pump (which is recommended, especially for turbo apps). Or can be plugged into the fuse panel when the old fuel pump relay is removed.

Note : Mk2 Golf/Jetta apps are only supported right now by hooking up the wiring to the FPR socket on the fuse panel. I am working on finding the correct connectors and pins to make this PNP at the pump

Supplied ground wire for fuel pump grounded to body. Only needs to be hooked up if running the new fuel pump wire directly to the fuel pump. Make sure you clean the grounding surface to the body

Mk2 will not need to do this unless running after market fuel pump setups

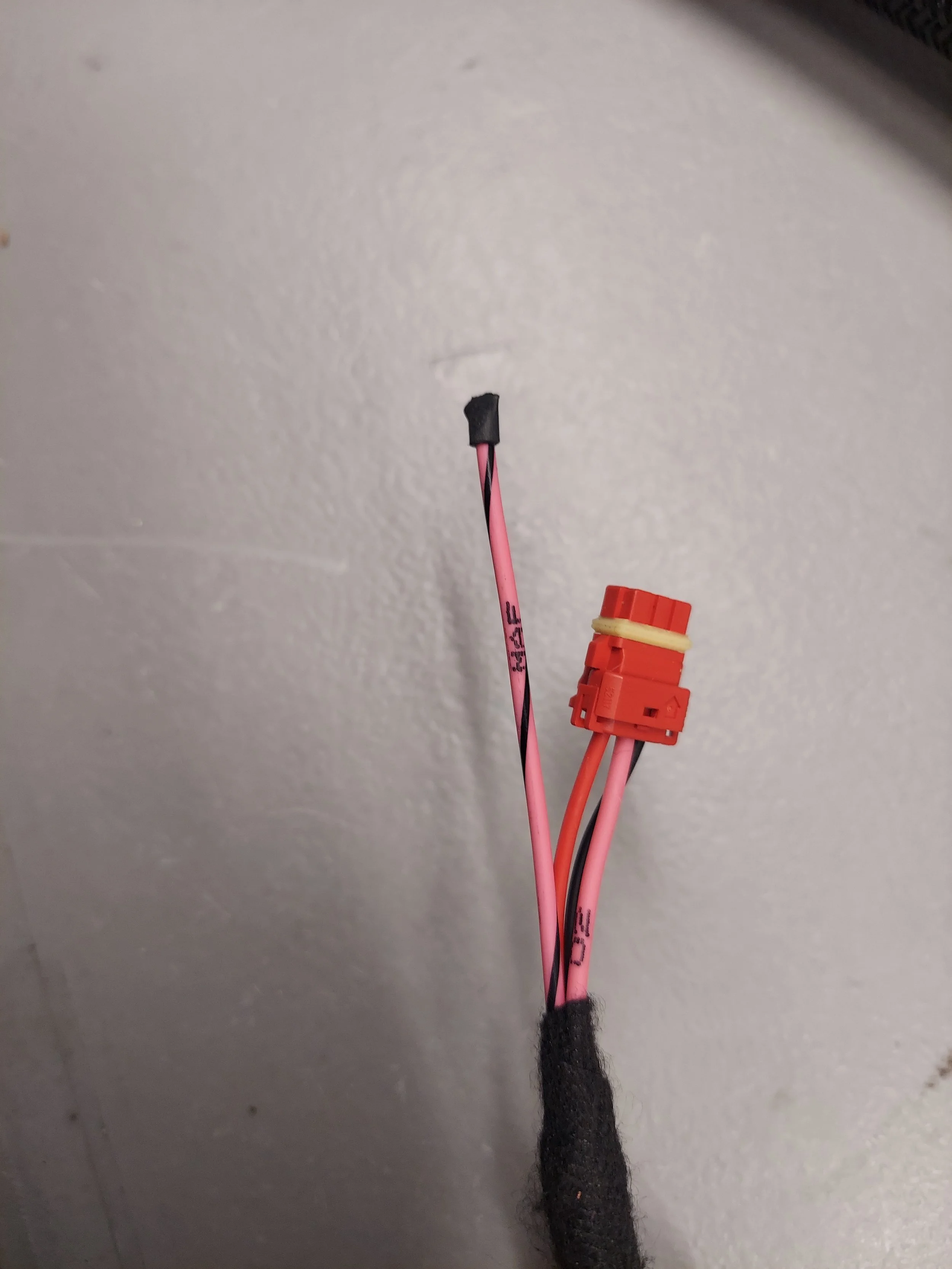

If opting to not run the new fuel pump power wire to the fuel pump, the wire can be simply plugged into the old fuel pump socket on the fuse panel. It will go into the socket that pin 87 on the fuel pump relay went into.

Fuel pump power wire plugged into FPR pin 87 on fuse panel

Note : Depending on the year of your car your fuse panel will look different (CE1,CE2), but this step will remain the same. Just follow the pins on your original relay

Remove cold start relay/hot start relay. Can be located on the fuse panel or steering column. The FPR and CSR are both not used. They are going to be located in a few different spots depending on the app. Some are on or above the fuse panel.

Note : This style relay jumper block will only be on certain older car cars usually 82 and down.

If you do not remove the CSR it will make a buzzing noise due to being fed a tach signal on the new setup

Install airbox block off plate (reuse old Oring). On Cis-E apps only 2 bolts will be used. Remove the flapper arm disc. You can remove the entire flapper arm assembly, but it is not necessary and will gain no performance.

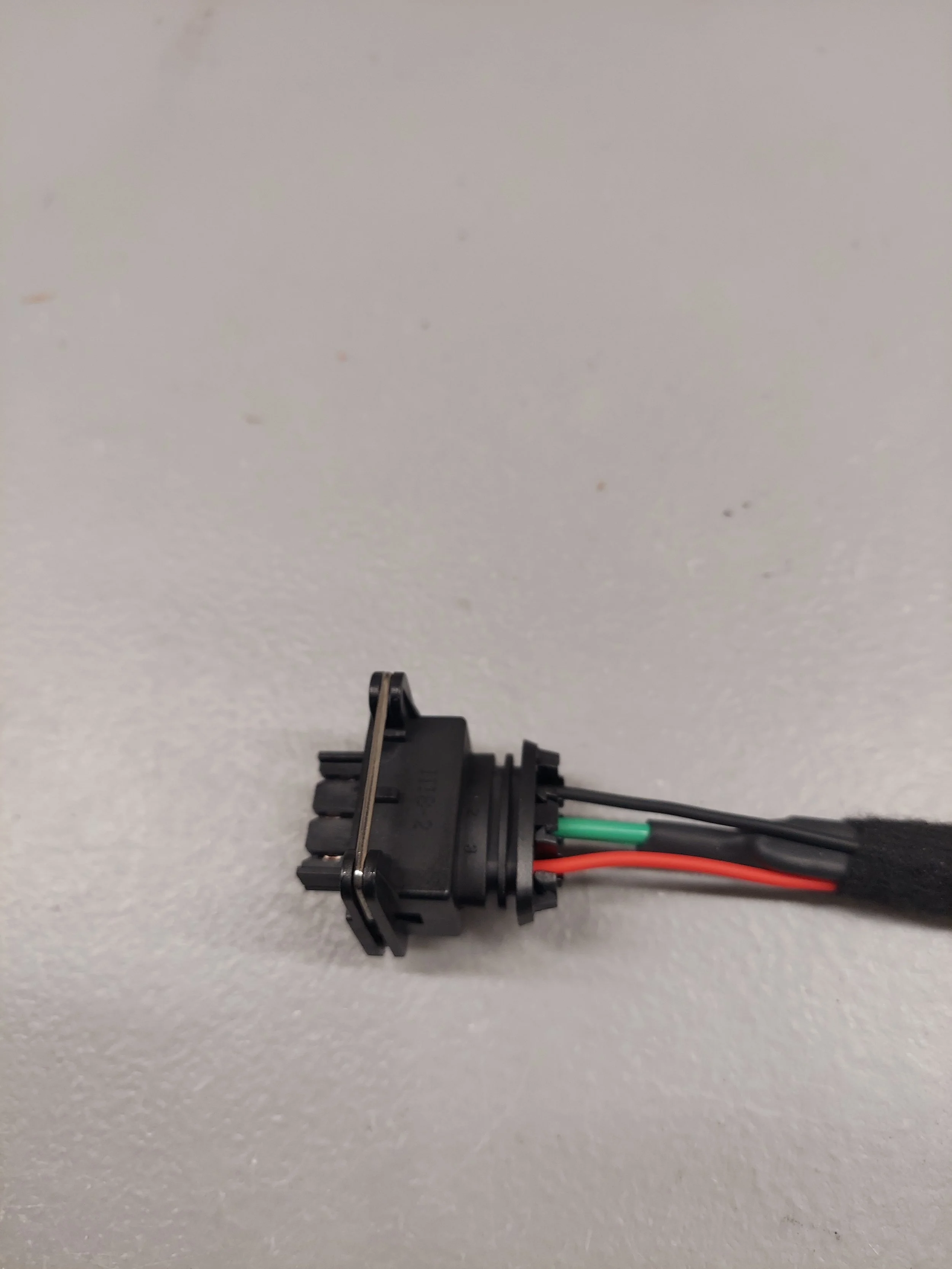

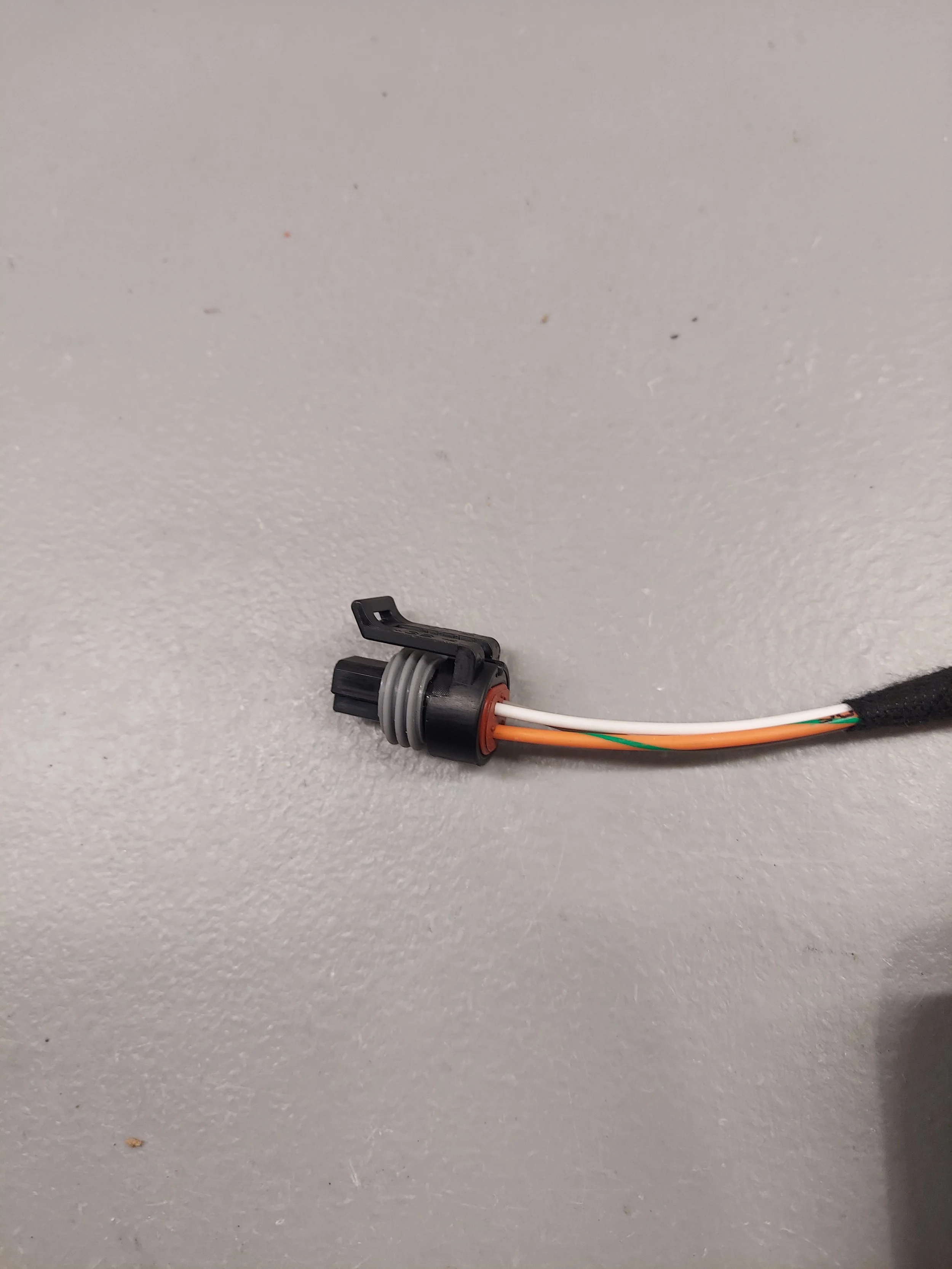

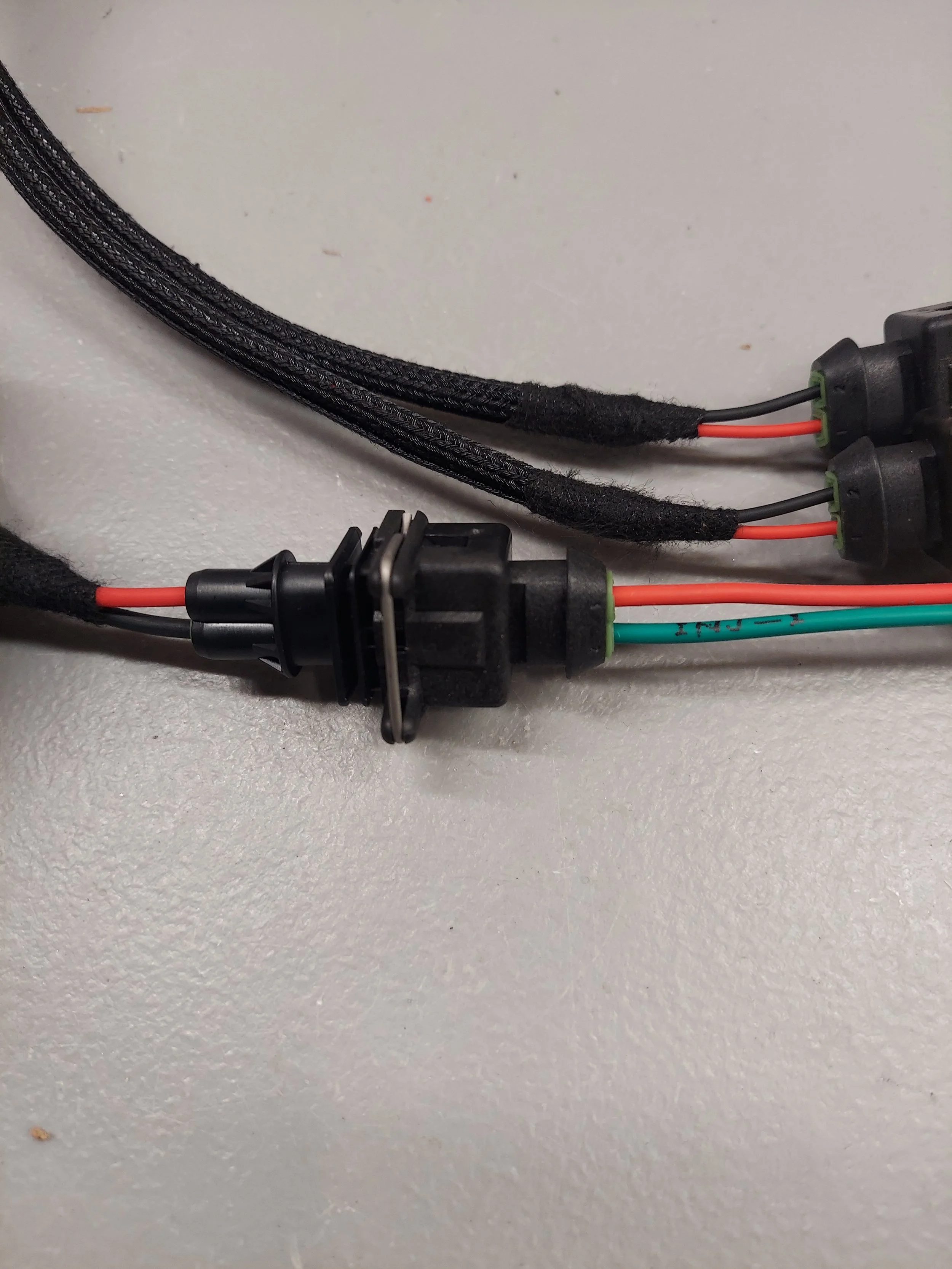

Hookup labeled wire connectors to their sensors.

The extra unused wires I like to tuck/ hide against the firewall under the brake booster

Note : If using the stock cis aux idle valve on the back of the intake manifold DO NOT hook the IAC connector to that. The IAC connector is for a true IAC valve like aba or 16v which can be optionally installed in place of the aux idle valve

Remove the old cis o2 sensor and install the new wideband sensor. If the old sensor is seized, you can leave it in place and have the supplied bung welded into the exhaust.

I have pre-calibrated the wideband o2 sensor with the lc2. If you power on the lc2/car with the o2 sensor disconnected from the lc2, the sensor will need to be removed from the exhaust and recalibrated. Calibration instructions are in the innovative manual provided as well as diagnostic codes for the gauge if there is a problem with the system

Reinstall battery and hook up the 2 red fused power wires to the positive terminal and hook up the 1 black wire to negative terminal. This will complete the hardware install

Plug in the data cable to the microsquirt ecu and use the usb to serial adapter to plug into your laptop you're going to be tuning with. Depending on your laptop software you may need to download a driver for the usb to serial adapter to work

Note : On MK2 Golf/Jetta/Scirocco the headphone jack side of the cable will feed from inside the car out to the rain tray through the same 1/2”-5/8” hole the afr gauge/fuel pump wires come through. There is a piece of marine shrink wrap included to seal the headphone jack/com port once connected

Open the tuner studio software. link http://www.tunerstudio.com/index.php/downloads

This is the main page. Click create new project

Add project name. Click detect, this will search for the ecu. Key must be in on position to power up ecu and the data cable hooked to the ecu with serial to usb adapter hooked up to your laptop/tuning computer. If it does not detect, you will probably need to download the driver file for the usb adapter or change the communication baud rate (it is usually a driver file missing). I have made sure to bench tested all the cables, sensors, and harness in your kit directly with your ecu before shipping.

Once ecu has been detected, click accept, then click next

Next screen is Configuration settings. These do not need to be touch, the default settings are good. Click next

Next screen is Communication settings. Click test port, it should come back successful. Click next

Next screen is dashboard. This is the gauge display you will see once the ecu has been connected to tuner studio. You can leave it on default, but I recommend downloading the dashboard display I have emailed over with the base file copy and installing that. To do that check other, then click the 3 dots in the right corner to browse for the file download.

Note: If using the lite free version this option will not work

Once new dashboard has been downloaded, you’ll see there’s a lot more gauges for viewing data added. Click finish and that will conclude the initial setup

You will now be able to see your dashboard gauges. If you have chosen to download the custom dash display I sent over, you will notice the fuel psi gauge has a red box around it. We need to create a channel for this gauge. Click tools, add custom channel wizard

Transfer the information displayed in this screen shot exactly the same. Click next

Transfer the info in this screen shot again. Click finish

Now that the fuel psi gauge is setup the red box should be gone around it. Right click on the fuel psi gauge, put the cursor on sensor inputs 2, and then click on fuel psi. The fuel psi gauge should now be working and no red box around it

At this point your about ready to fire the car up for the first time. I would cycle the key a few times to let the fuel system build up pressure and check for any fuel leaks. Once this has been done try to start the engine. Adjustments may need to be made to the idle screw or throttle blade stop. With the engine running, check the fuel psi gauge on your dashboard. It should be at 58-62psi, if not, adjust the fuel psi regulator. To do this loosen the 17mm lock nut and turn the center stud with an 5mm allen key. Turning out/left/counterclockwise will lower psi, turning in/right/clockwise will raise psi. Snug the lock nut once psi is set, do not over tighten

The next step is absolutely critical, ignition timing must be checked/set with a timing light. To do this we are going to go into the the software and lock the ignition at a set degree. On the main dashboard click the Ignition Settings tab, then ignition options

In ignition settings, under fixed advance, switch from user table to fixed timing. Now check Timing for fixed advance (degrees), it should already be set at 10, if not type in 10 for 10 degrees, Hit burn. you should hear the car idle down some since timing has now been retarded. You can now verify that the distributor is set correctly by checking timing with a timing light. The timing light and marks should read/line up 10*, if not adjust the distributor. Once timing is set and verified, go back into ignition settings and switch from fixed timing back to user table, hit burn.

AGAIN DO NOT SKIP THIS STEP!!!!!

Now that timing is set, and the car should be warmed up, it’s time to start dialing in the fuel with the autotune feature. On the main dashboard click Tune Analyzer Live, then advanced settings. The autotune won’t work unless the coolant temp is above the minimum clt temp. This should be set to 140-160*. If your engine is above those temps (which can be checked on the main dashboard) click start autotune. You will see the tracer moving and correcting cells in the fuel map. Click on the status bar, you will see in cell weighting the chart changing color, once you see dark green in those areas, fuel should be dialed in to the settings on the afr chart (I have preset the afr settings in the fuel settings)

Once idle afr is dialed in its time to start driving the car and letting the autotune do its magic. Drive the car around, IN A NORMAL CONTROLED MANNER, around town and on the highway. You will see colors start popping up in the cell weighting area. Once the cell weighting is dark green in those areas on the you can start doing full throttle pulls. Note that the tracer will only hit certain load areas, this is normal. Keep an eye on your o2 gauge to see where afr is at.

AFR targets: Idle 12.8 on most 8v apps/ 13.5 idle on 16v apps, Cruising and around town 13.8-14.5, full throttle NA engines 12.5-12.8.

Full throttle in boosted engines 11.2-11.8.

Start on the lowest boost setting possible and work your way up.

On boosted apps don’t go for broke and just start hammering it full throttle, do easy progressive pulls so the ecu can correct the fuel. If you see lean mixture, get out of the throttle, wait a few seconds then do another pull. On turbo apps pay attention to your Intake temps when doing pulls. Try not to go over 120*f. When your finished tuning click apply/burn/save on ecu, then save on ecu. This will burn the autotune changes to the ecu. Turn the autotune off when done.

Save a copy of config file as a backup as well under file, save config. Files and logs will be stored in Documents under Tuner Studio.

If you are uncertain at any time or uncomfortable with tuning, contact us and we will help get you sorted.

DONT BE STUPID, you can hurt your engine very easy with lean afr, Ping/Knock and full throttle driving like speed racer, especially under boost.

Once your warm engine tune has been complete we can turn the EGO/O2 correction control percentage down. It has been set to 100% in order to make tuning easier.

Go into Fuel Settings, Ego Control, and turn Controller Authority down to 20%
